Environmental protection High output Oxidizing Pellet Kiln customizable
Oxidized Pellet Kiln Description:
Our oxidized pellet rotary kiln is typically designed to provide high-quality pellets for blast-furnace ironmaking. And it's able to help to improve productivity, as well as to protect environment.

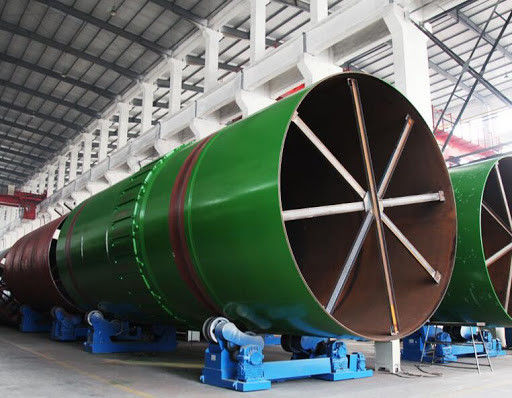

Our oxidized pellet rotary kiln mainly consists of rotating part, supporting part, kiln head cover, sealing parts of kiln head and end, and burning device.
The guard boards of kiln mouth employ individual cast, thus easy to install. And they have good heat-resistant quality as well as wear-resisting property.
ZTIC Oxidized Pellet Rotary Kiln technical characteristics:
Kiln body is made of high quality composed of carbon steel or alloy steel plate and automatic welding;
Tyre,Support Roller,Open gear adopts alloy cast steel；
Sliding bearing with large gap not scraping tile bearing;
Transmission device adopts hard tooth surface reducer, flexible diaphragm coupling, dc motor;
Adopts hydraulic gear wheel;
Preheater scales were used respectively to veiw of kiln head, and cylinder pressure tight seal;
A slow drive device.
Oxidized Pellet KilnTechnical Parameters:
| Name | Specification | Capacity (t/h) | Power(KW) |
| Rotary dryer | Φ1.8×14m | 30-40 | 22 |
| Φ2×14m | 40-60 | 22 | |
| Φ2.2×12m | 50-55 | 55 | |
| Φ2.2×16m | 40-45 | 75 | |
| Φ2.4×18m | 45-60 | 95 | |
| Φ3×20m | 160 | 220 | |
| Φ3.6×24m | 150 | 250 | |
| Φ4.2×25m | 250 | 315 | |
| Disc balling machine | Φ3.6m | 18-20 | 22 |
| Φ4.2m | 28-33 | 55 | |
| Φ4.5m | 35-45 | 75 | |
| Φ5.5m | 40-60 | 110 | |
| Φ6m | 65-70 | 110 | |
| Chain grate heater | 1.6×24m | 100,000-200,000tons/year | 15 |
| 2.4×24m | 300,000tons/year | 11 | |
| 2.8×36m | 400,000-600,000tons/year | 18.5 | |
| 2.8×42m | 400,000-600,000tons/year | 18.5 | |
| Rotary kiln | Φ2.2×18m | 10-12 | 45 |
| Φ2.5×20m | 18-25 | 30 | |
| Φ2.8×22m | 30-34 | 90 | |
| Φ3×28m | 40 | 90 | |
| Φ3.5×30m | 50 | 220 | |
| Φ4×30m | 90 | 190 | |
| Φ4.7×35m | 140-180 | 315 | |
| Φ5×35m | 165-202 | 315 | |
| Φ6.1×40m | 226-335 | 315 | |
| Oxidized pellet rotary kiln | 20m 2 | 40 | 7.5×2 |
| 30m 2 | 40-60 | 11×2 | |
| 40m 2 | 90 | 15×2 | |
| 50m 2 | 112 | 15×2 | |
| 69m 2 | 130-160 | 11×2 | |
| 121m 2 | 270-304 | 15×2 | |
| 128m 2 | 280-315 | 18.5×2 | |
| Sintering pellet cooler | 140m 2 | 302 | 11×2 |
Note: Specific parameters should refer to particular contract.
